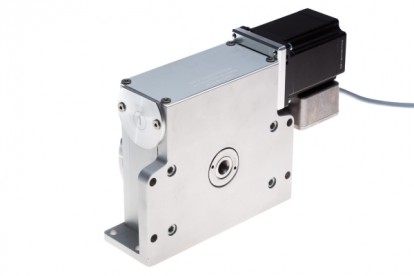

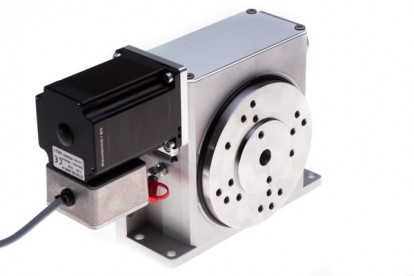

4th Axis Rotary Table - High-Z Range
Previous image
4th Axis Rotary Table - High-Z Range
Next image
Zoom image

4th Axis Rotary Table - High-Z Range

Ask a question (2)
  • Highest quality made in Germany with high-precision worm-gear and a stopping moment of over 20Nm
  • 3D 360° is possible with almost all materials e.g. plastics, timber, Aluminium or even brass, engraving of all kinds.
  • Mounting holes: Diameter 7 mm with spacing 150 mm (4 vertical, 4 horizontal) therefore the rotation table can be clamped horizontally as well as vertically, providing great flexibility in setup.
  • Overall height vertical: 145 mm
  • Overall height horizontal: 70 mm
  • Top height: 60 mm
  • Faceplate diameter: 109 mm
  • Maximum feed diameter: 120mm
  • Running time: 0.025 - 0.04mm
  • Parallelism Mounting surface horizontal / contact surface Faceplate: 0,02 - 0,03mm
  • Centering flange diameter: 55 h7 mm
  • Circular running accuracy: 0.015 - 0.025 mm
  • Reversing play maximum 0.04 °
  • Internal cones: MK 1
  • Internal bore / through hole: D = 10.3 mm
  • Bearings: 4-position sealed ball bearing / preloaded, play-free
  • Output torque: 20 Nm!
  • Weight: 3.9 Kg
  • High-precision, ground worm gear with gear ratio: 100: 1 / preloaded with disc springs
  • Rotations on the chuck flange: from 0.1U / min to approx. 3.2 rpm.
  • Step resolution at the output: 160,000 steps per revolution with 1/8 step operation Setting accuracy +/- 1 step - corresponds to +/- 0.135 angular minutes
  • £995.00
  • exc VAT
Qty:
  • png file type 4th Axis Settings (31 kB)
    These are the WinPC-NC settings for the Zero3 controller with 4th axis setup.
  • pdf file type Manual & Specifications (54.2 kB)
  • pp file type Vectric Post Processor for 4th Axis - Y to A (5.9 kB)
    Copy this file to your Vectric PostP folder, it replaces Y axis moves with A-axis (rotary) moves. To install, go to your VCarve Pro or Aspire File menu and select the option 'Open Application Data Folder ...'. This will open up the program's data folder. Then navigate to the 'PostP' folder and copy the file there. Now when you open the post processor drop down, you'll see the new post processor available.
  • pp file type Vectric Post Processor for 4th Axis - X to A (5.9 kB)
    Copy this file to your Vectric PostP folder, it replaces X axis moves with A-axis (rotary) moves. To install, go to your VCarve Pro or Aspire File menu and select the option 'Open Application Data Folder ...'. This will open up the program's data folder. Then navigate to the 'PostP' folder and copy the file there. Now when you open the post processor drop down, you'll see the new post processor available.
Ring Engraving
Ring Engraving

Also available as an option with our 4th rotary axis is a ring engraving accessory. Engrave on the inside or outside of the ring.

Product questions

  • Dean
    13-01-2022, 23:28

    The maximum feed diameter is 120mm. Does this mean it will only turn cylinders of wood up to 120mm diameter? I'd like to carve up to 200mm cylinder. Is there a way to do this? Cheers

    Administrator
    17-01-2022, 11:32

    This accessory is not for turning wood, have a look at the turnery accessory for that. This accessory rotates slowly, but with high torque and is suitable for milling details on materials up to and including metals. The max diameter of chuck that you can fit is up to 120mm (larger than this will hit the foot plate of the 4th axis that is used to mount to the bed beneath since the centre is 60mm from the footplate). You could make a custom bed plate that has an aperture in it to recess a larger diameter of material from the chuck, but this is not a standard setup, you would make those modifications yourself.

  • Mark Close
    28-10-2018, 17:50

    Can the 4th axis be used to turn a part bu 180 degrees for double-sided milling?


    For example turn a piece over and then use a pocket or v carve toolpath?

    If so do you have a video of this being done?

    Administrator
    30-10-2018, 12:23

    Yes, the 4th axis uses a worm-screw, so it can move continually in either direction - there is no limit on the number of rotations. So it can support indexed milling as well as full rotary milling.
