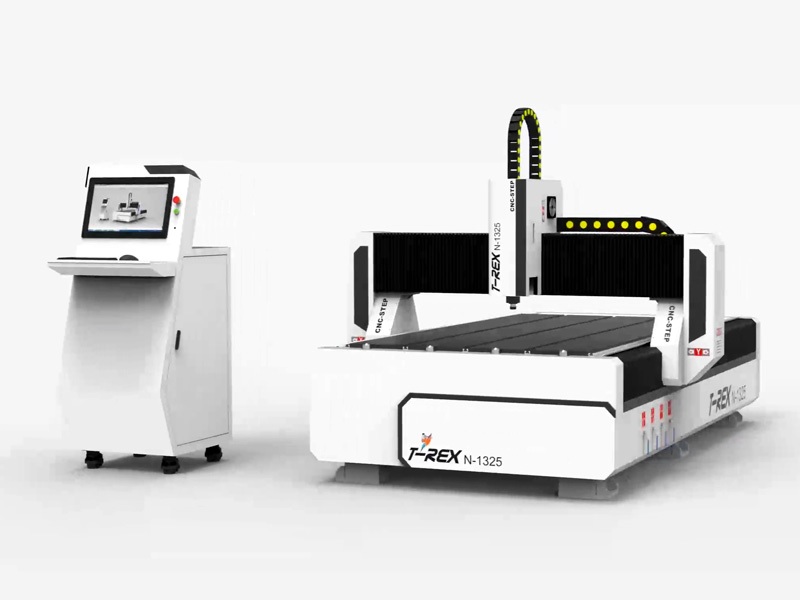

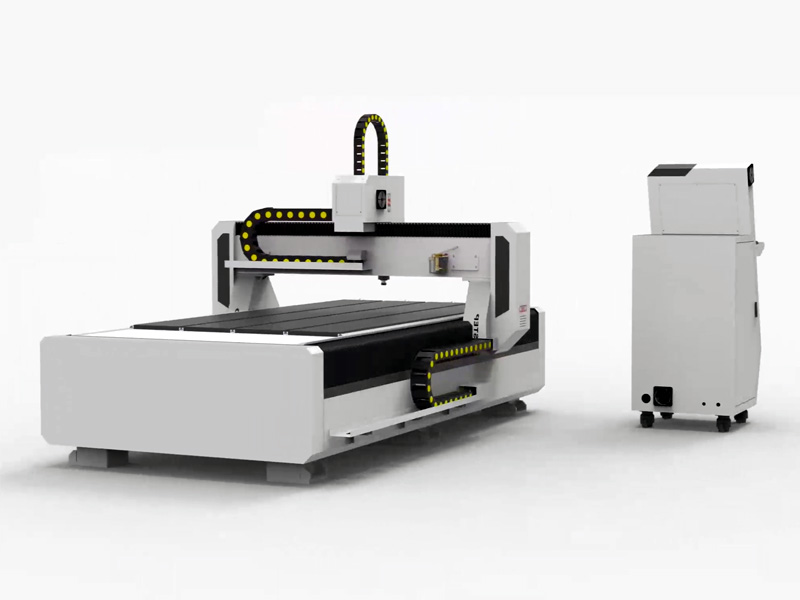

New T-Rex 1325

New T-Rex 1325

CNC Mill with Steel Frame

Working area: XYZ 2500 mm x 1300 mm x 200 mm (optional Z heights of 300 mm, 400 mm)

Clearance height (Top edge machine frame up to bottom edge bridge: 220mm (optional clearances of 320 mm, 420 mm)

Clamping Area X x Y: 2530 mm x 1320 mm

Overall Machine Size X x Y x Z: 3270 mm x 2150 mm x 1950 mm

Approx. Weight: 1550 Kg

Power supply: 380V

Vacuum table with T-slot rails: 4 Vacuum Zones


Milling with excellent precision

The CNC mill T-Rex with a steel frame (type 0609 and 0712 even with solid cast steel frame, all other tubular steel frames) is now available for your operation, precise and exceedingly fast! The CNC router serves as a connecting link between our small, accurate High-Z machine and the big RaptorX-SL milling machine. It is stable, accurate and robust built – Best quality in the minutest details.

Permanent quality inspection

The T-Rex is the first machine which we developed in cooperation with a foreign company. The steel frame and some technical components are parts from suppliers which we inspected and tested with our high-quality standards. Buying a T-Rex CNC mill you get a high-quality machine with well-tried technology.

High-quality components

Optimal dimensioned THK and HIWIN linear guidings, ball-screw drives, brushless engine technology and a solid massive steel frame-substructure, plus torsion-free and high-class craftsmanship at low price-level are the main features of this machine series.

Ball screw offers considerable ease of maintenance

The ball screw drive on the Z-axis convinces as a further plus point with significant ease of maintenance.
Spindles with dimensions of 25 mm and a pitch of 10 mm are installed on the Z-axis as standard. On a machine with a tool change system, the spindles’ dimensions change and are 25x5mm. The central lubrication gives the option of manual or automatic oiling of the spindles.

Constant quality control

We developed the T-Rex as the first CNC Machine in our product range that in cooperation with a foreign company with us and for us. The frame and some technical components are supplier products which are subject to our usual strict quality control. With the T-Rex milling machine and our successful High-Z CNC mill, you buy top brand products and technology that has been tried and tested for years.

Servo Motor Upgrade Option

Need maximum throughput and power?

The portal milling machine T-Rex Servo was specially designed as a more powerful alternative to 2D, 2.5D and 3D material processing. Servo motors on all axes reduce the machining time of the working process and increase economic efficiency. Besides, the position monitoring of the servo motors guarantees an even safer machining process The large machining area, including placement aid, is ideally suited for industrial panel processing.

High-quality components and bellows

Helical toothed ground racks, HIWIN/THK/PMI linear carriages and guides protected by bellows on all long axes and the solid steel frame make this mill a reliable and durable CNC machine. The T-Rex mill is suitable for many other 2D, 2.5D and 3D applications besides industrial panel processing. The cabling is also protected and safely located in the closed energy chains.



Ground precision racks



Z-axis ball screws with a diameter of 25x10mm



Bellows on all long axes



Solid construction with over-dimensioned components

Optional 300mm and 400mm Z-axis traverse path

This machine series can also be adapted to your unique requirements concerning the passage height and the Z axis’s travel height! Instead of the regular travel of 200mm, we also offer the option of 300mm or even 400mm. We will discuss these and other requirements with you in detail to ensure that your new CNC mill will provide you with maximum flexibility and productivity in the future.

Most solid construction due to oversized steel construction for vibration damping

The newly designed, heavy machine bed of the T-Rex series counteracts vibration damping’s difficult issue efficiently. We deliberately use components with oversized wall thicknesses, usually only used in machines for stone processing. This fact results in the consistent up to 18 % higher dissipation of vibrations into the machine bed, responsible for unclean surfaces during milling.

Many possibilities thanks to high stability

Massive parts, precisely matched components and a robust steel frame enable the CNC user to machine countless materials!

Important Information (please read before ordering):

  1. This machine requires 3-phase power supply.
  2. Lead time for this machine is currently approx. 20 weeks.
  3. Shipping is an estimate and may increase, depending on your location (for example highlands and Islands). Please email sales@prototools.co.uk to request a quotation for your specific location and we will be happy to provide this for you. If you place the order without requesting this specific quotation, we will determine any surcharge for shipping and advise you of this, requiring payment before proceeding with the order.
  4. The machine comes in a custom built crate with dimensions 338 cm x 228 cm x 200 cm. The machine weighs approximately 650 Kg and you will need to be able unload this from the lorry, so you will need to have access to a forklift for this, with prongs that are at least 1.6m long to fully support the pallet as it is being unloaded. If you do not have a forklift, perhaps there is a local business who can help? Or else you can hire one to be there for the delivery. Make sure to check that the entrance of your premeses is large enough to accommodate the machine crate.
In stock (1000 items available)
Additional Order Options:
(Base Price: £17,000.00)
  • Upgrade to Servo Motors
  • Automatic Lubrication
  • Spindle
  • ER25 Collets
  • Vacuum Pump for Bed
  • Safety Enclosure/Fencing
  • Security Contacts
  • CAD/CAM Software
  • £22,640.00
  • exc VAT
Qty:

Product questions

No questions yet. Be the first to ask a question!
