High-Z T-400 CNC Machine

High-Z T-400 CNC Machine

Precision German Engineered Quality with Dedicated UK support

A multi-purpose CNC machine with routing, milling, drilling, engraving, sculpting capabilities. Work with many materials including woods, MDF, modelling wax/resins, foams, plastics such as PVC and plexiglass through to metals such as Aluminium, Brass, Copper and sheet steel. Cut foils and vinyl for stencils or sign art. Mill Printed Circuit Boards and create front panels and enclosures for your prototypes.

  • Machine Working Area: X=400 mm; Y=300 mm; Z= 110 mm
  • Enhanced power and precision through the use of 2 motors on the X-Axis. This arrangement provides for a constant tension and compression during milling operations.
  • Only high quality bearings and guideways used to provide smooth precision of operation  (repeatability +/- 10µm).

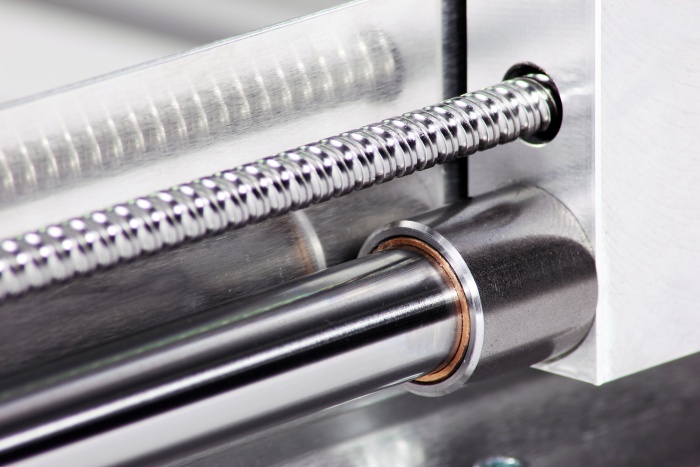

  • X and Y guide ways are hardened and polished, with double sets of bearings used along with higher precision Ball-Screws on X and Y axis.
  • Traverse rapid feed max. 12000 mm/min, Working feed max. 8000 mm/min
  • Resolution 0.00635 mm (1/10 Step)
  • Reference switches on all axes with software limit control
  • Double safety emergency stop button
  • Energy chain for clean cabling
  • Milling Motor anchorage: Euroneck 43mm
  • Modular frame for universal application
  • Table size/clamping area: 730 x 390 mm
  • Total dimensions incl. motors : LxWxH = appr. 798x570x570mm
  • Machine comes complete with a 4-axis, 5-channel (peak 3.5A per channel) microstepping driver. The drive consists of 4 qulaity Nanotec stepping motors (2X, Y, Z, A) with 2000 steps/rev (1/10 Step).
  • Machine comes with KinetiC-NC Ethernet Control System. KinetiC-NC software application runs on Windows 10 PC (supplied by customer). The KinetiC-NC hardware control module requires an ethernet port and a spare USB port.
  • 2 Year Warranty.



Note: The machines are made to order for each customer and it will take 4 weeks for a standard factory build. The machines will arrive on a pallet and someone will need to be on location to receive the order. Two people will be required to lift the machines safely, due to the size and weight of the machines.

Additional Order Options:
(Base Price: £3,350.00)
  • Router/Spindle
  • Milling kit
  • Vectric CAD/CAM (save up to £165)
  • T-Groove Clamping Bed
  • 10-piece Starter Milling Tool Set (save £20)
  • Tool Length Sensor (save £50)
  • Vacuum Extraction Attachment (save £20)
  • £3,625.00
  • exc VAT
Qty:

Product questions

  • chris Ifantis
    07-02-2018, 22:40

    Hello
    Our job involves working with brass, and we would like a machine that creates embossed designs with great detail, for my job, which is creating wedding invitations. What machine would you recommend for me. One that is no more than 30cm-40cm. And what are their capabilities in general.
    Thank you very much

    Administrator
    08-02-2018, 10:48

    The T-400 with milling kit and spray coolant accessory would be a suitable system. The High-Z T series is well suited to cutting light metals such as Brass, Copper, Aluminium. For fine detail precision metal work, you should also consider the Mechatron High-Frequency spindle options.

  • Wilson Brown
    06-06-2017, 18:08

    What does cnc stand for

    Administrator
    06-06-2017, 18:20

    CNC stands for Computer Numerical Control.
